 Stretching painting canvas: CT3001

AUTOMATIC MACHINE FOR ASSEMBLING PAINTING CANVAS ON WOODEN FRAMES



The machine is capable to assemble canvas on frames ranging from 10x10 cm. to 100x120 cm.

Average production cycle is to 180 complete frames per hour.





Work description











From a pile of wooden frames pre-assembled the machine take one frame each time.





 The system is capable to adapt is structure at all dimensions of frame, from 10 x 10 cm to 100 x 120 cm. Great dimensions are disponible as option.



AUCO Italia patent rights on this system









The frame is loaded, shut properly, squared at right angles.



AUCO Italia patent rights on this system

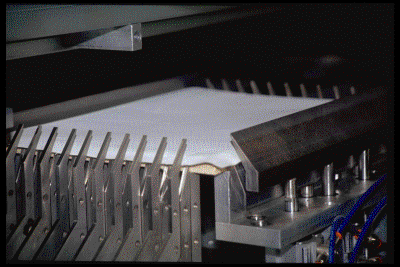

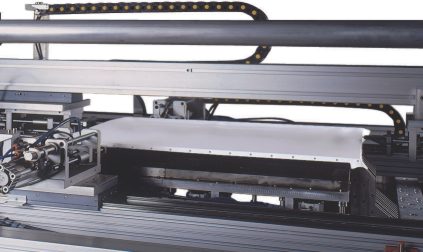

The canvas roll is cut to measure, and positioned into the frame.





Photo reserved

Patent pending

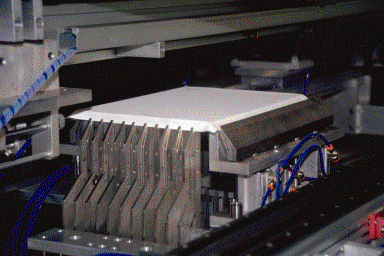

The canvas is perfectly stretched on wodden frame.





AUCO Italia patent rights on this system

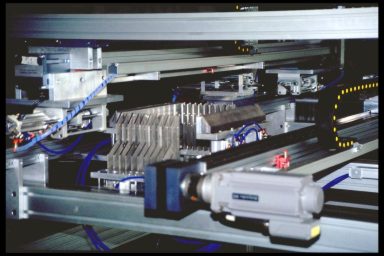

The stapling tools start simultaneously on the four sides.

The nails' speed is of 4 nails every second.



AUCO Italia patent rights on this system











The finished frames are stacked on the output container.





 Inside the machine

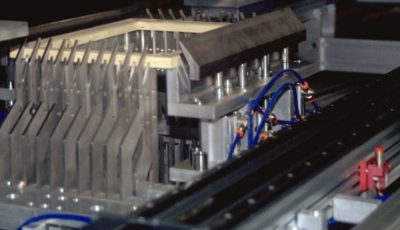

The stapling system

.

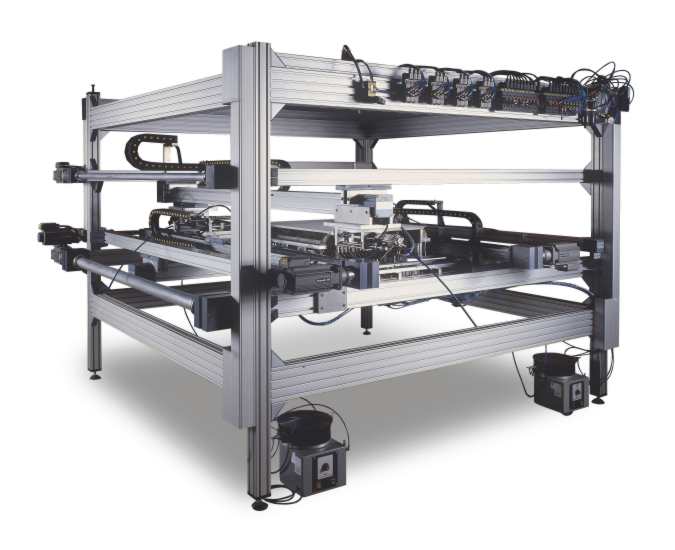

 The heart

.





The new coach work open

 .





Technical description







. The machine is totally automatic and it doesn't require the presence of an operator.

Average production cycle is up to 180 complete frames per hour. The machine can operate 24 hours a day.

Before starting process, it is only necessary to set the machine to the frame size. This operation will only take few minutes.

The machine is capable to assemble canvas on frames ranging from 10 x 10 cm. to 100 x 120 cm.

The machine automatically loads one frame at the time, shut properly, squared at right angles.

The canvas is cut to fit perfectly.

The software program checks that every single nail is correctly fastened to the frame. The nails' speed is of 4 nails every second.

The finished frame is stacked on the output container.

Some stops are needed only to load and unload the product.

All the movements are made with brush-less motors and pneumatic pistons, and there is very little noise.

The control display shows the alarms and which maintenance is due and when.

Connection with a telephone modem enables to have a remote assistance for the machine.





 CT3001

Weight 2700 kg

Dimensions: 5600x2700 mm 2500 mm heigh

Power supply: 20KW

Supply of air compress 6 Bar

Dimensions frames ranging: from 100x100 mm. to 1000x1200 mm

Average production cycle: up to 180 complete frames per hour.

Telephone line is suggested.



You must only place the frames ...

... and take away the finished products.







PRICE AND AVAILABILITY



The machine is delivered within 6 months from the order.

The price for the supply of the machine, the installation and inspection instruction is 263.000 Euro.

For any information please contact us
